Rev.Zero
Dodge Viper Crankshaft Pin Kit (Gen 1, 2, 3)
Dodge Viper Crankshaft Pin Kit (Gen 1, 2, 3)
Regular price
$78.00 USD
Regular price
Sale price
$78.00 USD
Unit price
/
per
Couldn't load pickup availability

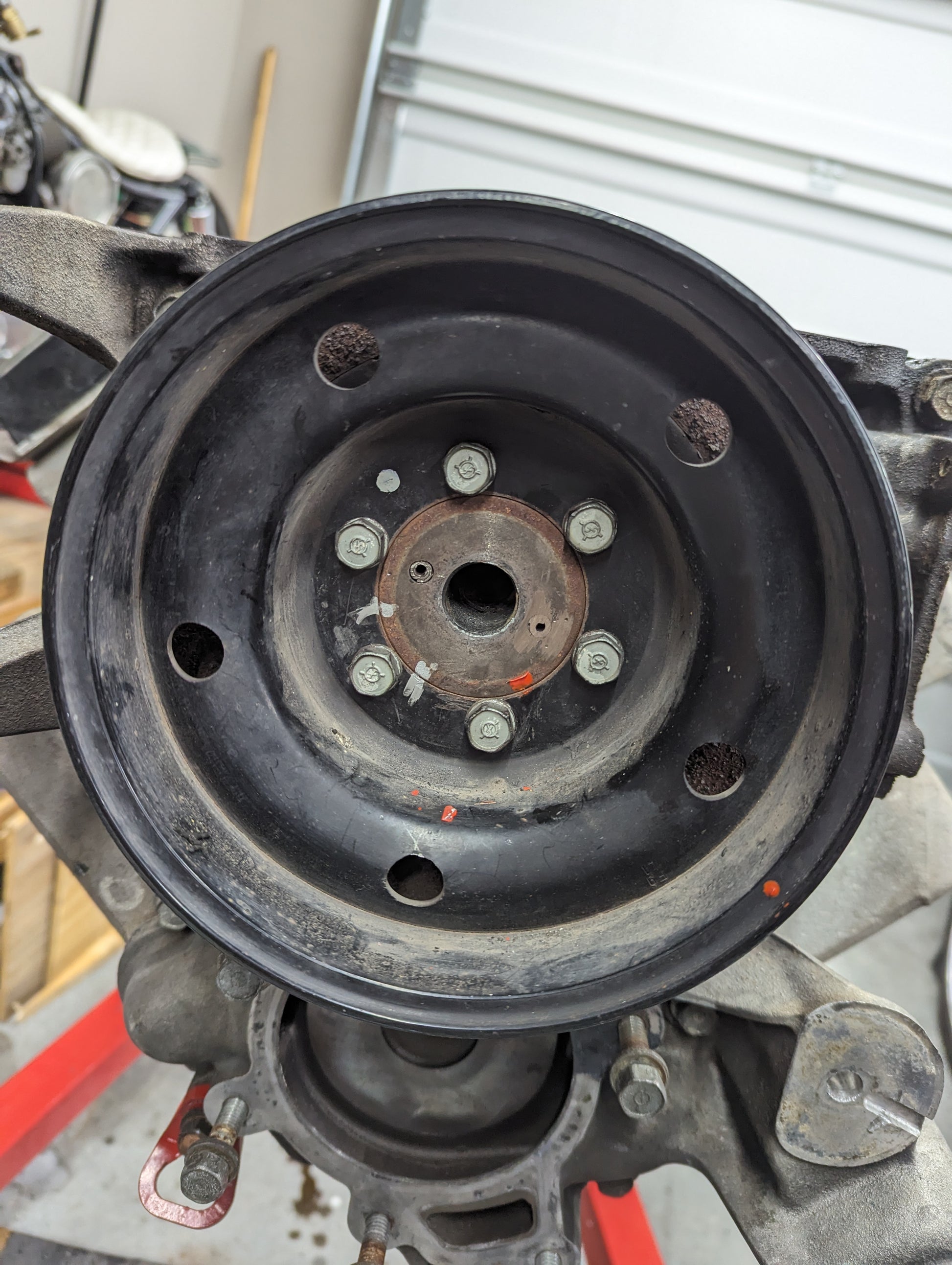

Kit to install pins to hold the crank damper/pulley to the crankshaft snout in place on a Dodge Viper (Crank pin, crank pinning kit).
Compatible with:
Gen 1 (SR I) 1991-1995
Gen 2 (SR II) 1996-2002
Gen 3 (ZB I) 2003-2006

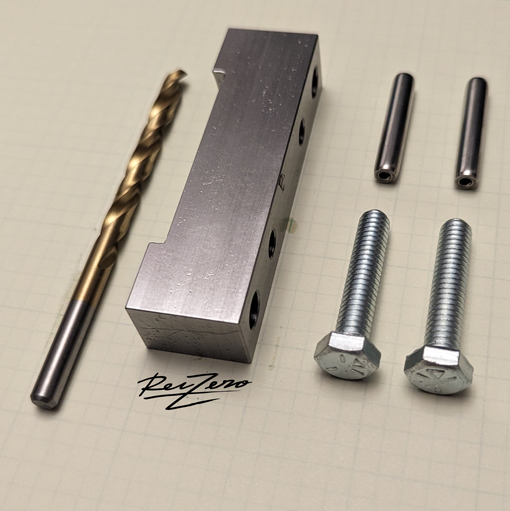

Included parts:

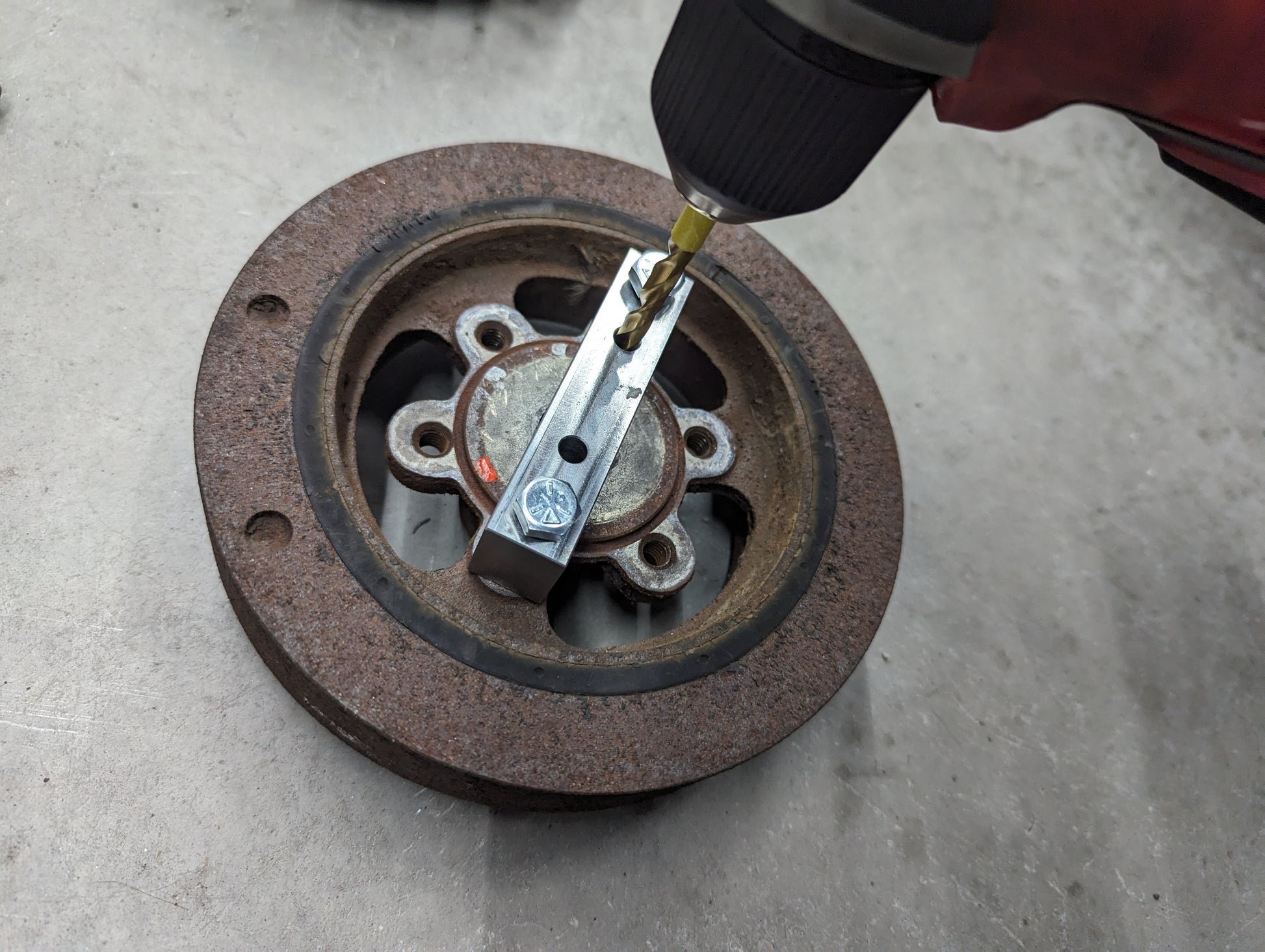

1 Drill guide/jig to drill the holes straddling the crankshaft snout and the crank pulley
2 Bolts to fasten the jig to the crank snout during the drilling process
2 High strength roll pins (over 7,000 lb shear strength)
1 High quality drill bit in the correct size for the roll pins
Detailed instructions
Recommendations:
A right-angle drill will be necessary for installation with the engine in the vehicle.
A torque wrench with 250 ft*lb capability will be required to torque the crankshaft retaining bolt.
What is crank pinning and why is it necessary?
- The crank pulley on the Viper is basically just held in place to the crankshaft by a press fit and the torque of the fastener/bolt. This means the pulley can spin on the crank snout, and cause damage, especially with hard driving or higher engine torque than factory.

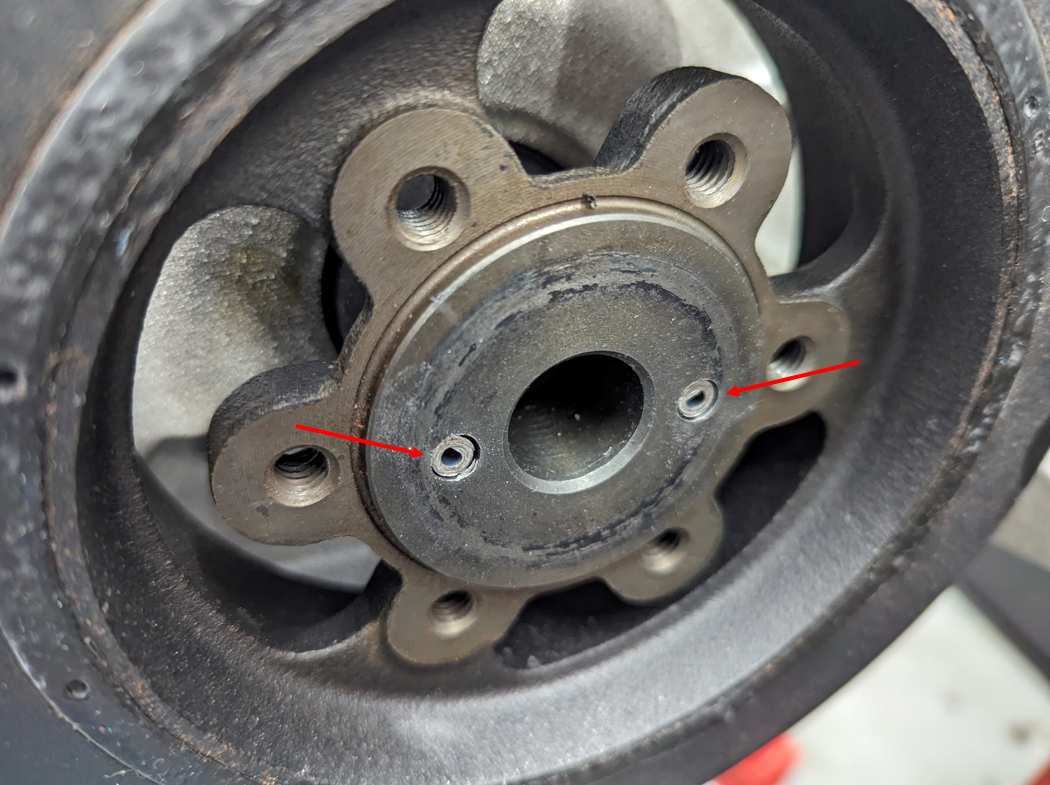

- Pinning it is inexpensive insurance against this expensive failure from happening. The two pins go in a hole drilled so that half of the pin is in the crank snout, and the other half is in the pulley, keeping the crank and pulley aligned even under extreme shock loading (like launching your car on slicks, or an imperfect rev-match)
Boosted Motorsports has a great video explaining the installation process: https://youtu.be/LtXdvZeNLOE?si=ZZ0GYLLBY4h8sUc0
